Application:

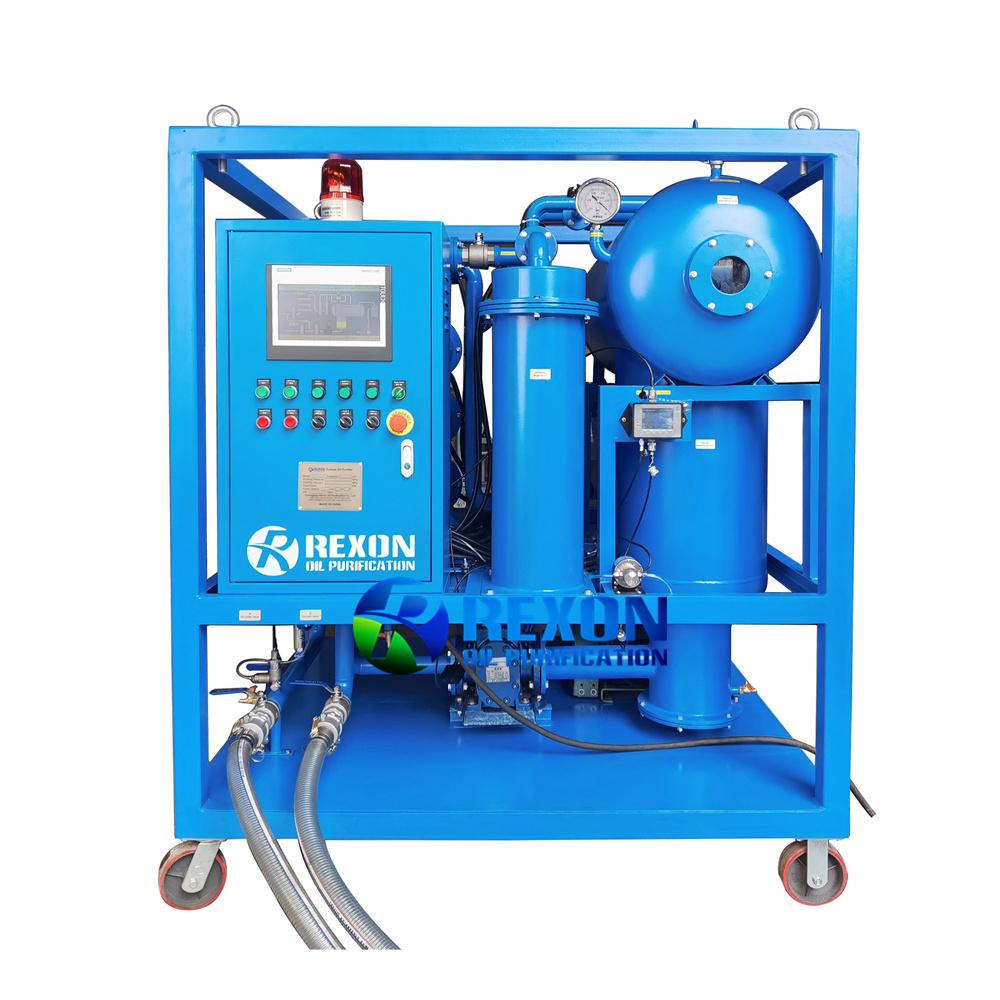

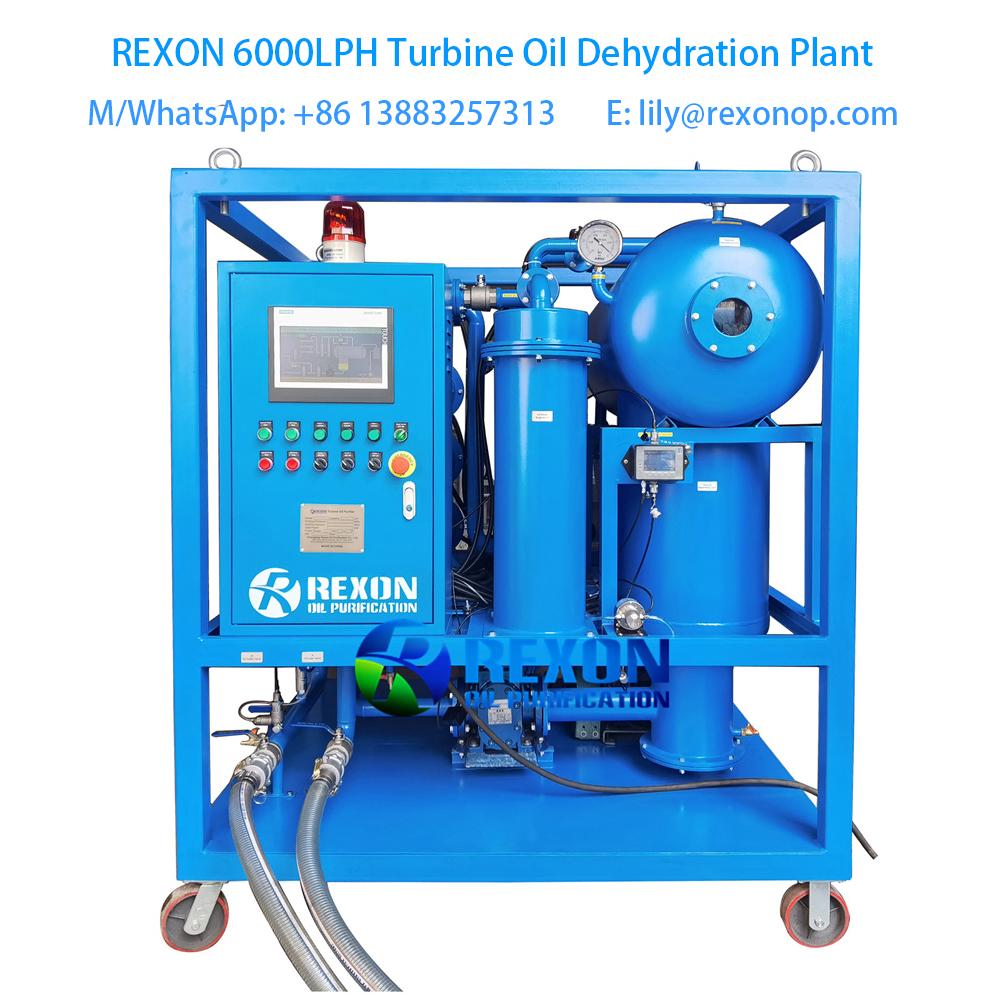

It is used for treating turbine oil to remove water, air and impurities quickly, improve oil quality, make sure adjuster and transformer system work normally and delay the maintenance period of machine.
Features:
1. Dewater and break emulsification efficiently. Remove a quantity of water and moisture. As adopt break emulsification, the oil turn to be clear.
2. Filter impurities efficiently, auto-back flush can remove a quantity of impurities and the precious material can remove the tiny particles instead of the clean device of oil system. The feature can have the serious polluted oil system recover and reach the standard of the turbine oil pollution control standard
3. Hi-autoimmunization, small, convenience, reliable, and safety. The purifier used infrared ray liquid level auto-control system. It can run without person operating so that have simple operation and reliable. TY oil purifier is especially for turbine oil, lubricating oil, hydraulic oil and so on.
Working Principle
When purifier starting, oil is flowed into primary filter under the difference pressure between inside and outside and big impurities are removed. After heating, oil flow into secondary filter. Then oil flow into water separator after small impurities are removed. The water separator adopts a special skill whichchanges the impaction of oil and water to speed up trace water and coagulate big water which is separated from oil and stored in water content. Oil is purified again by fine filter, the flows into vacuum pump which use stereo-evaporation removing left trace water. Vaporized water was drained away by cooler or vacuum system. When the oil was transported out by oil pump, the purification process has finished.
